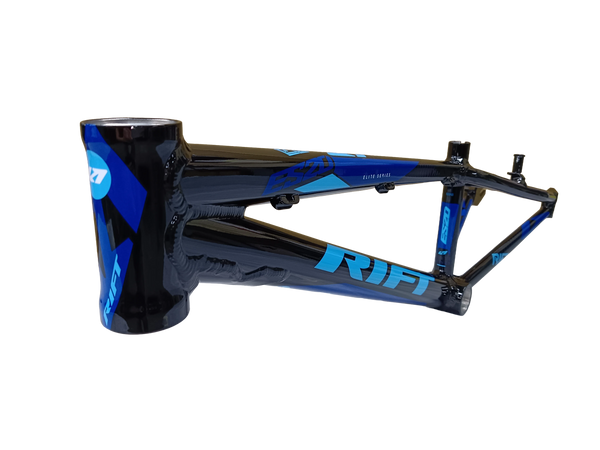

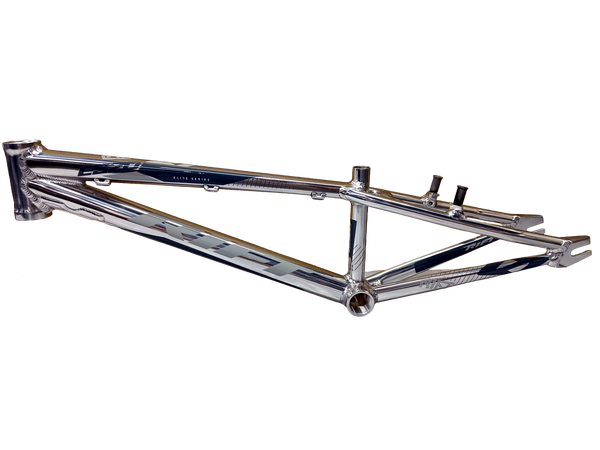

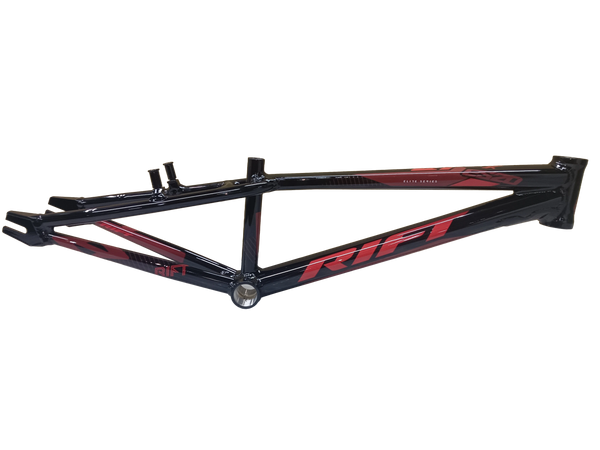

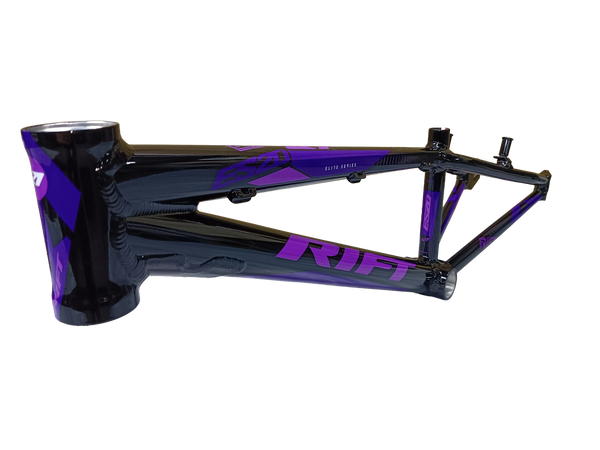

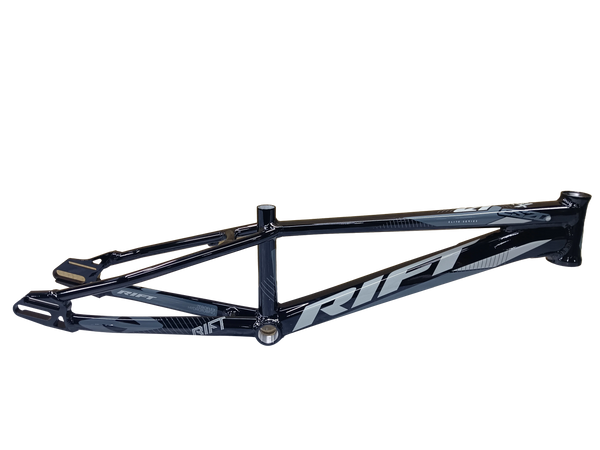

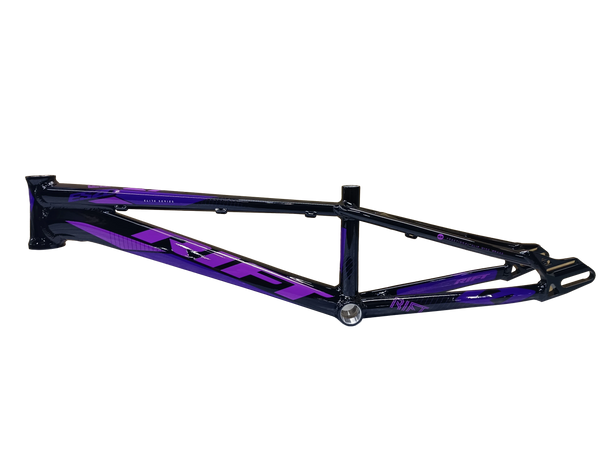

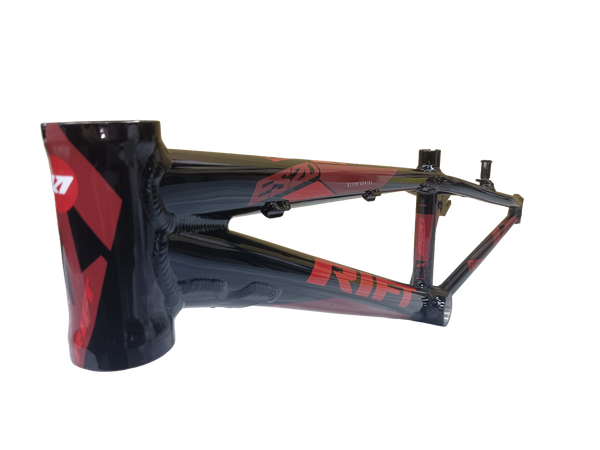

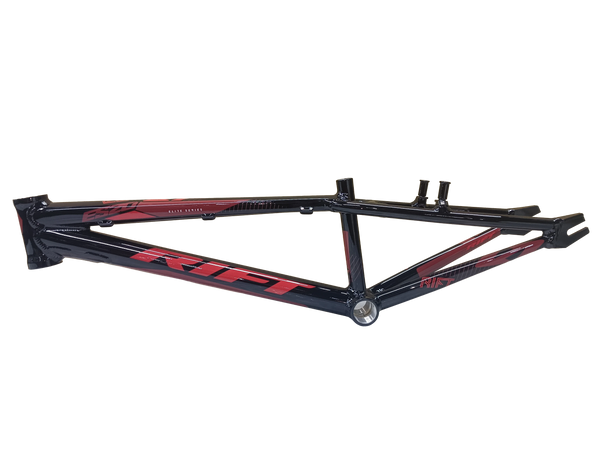

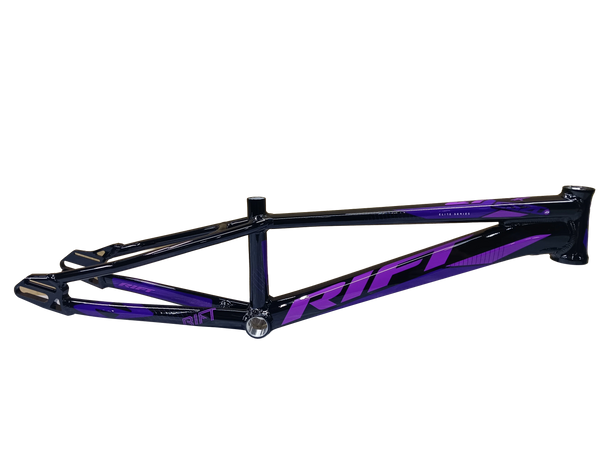

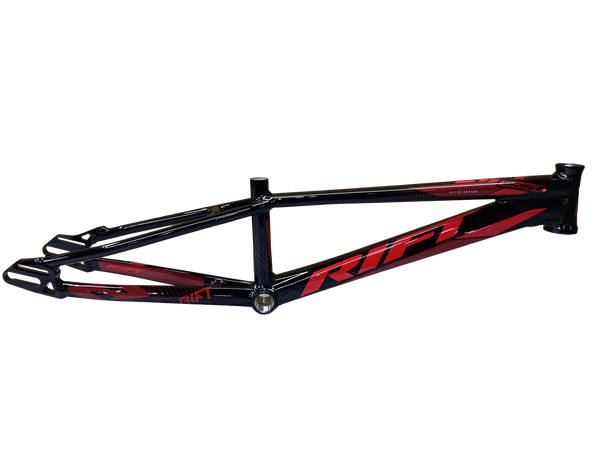

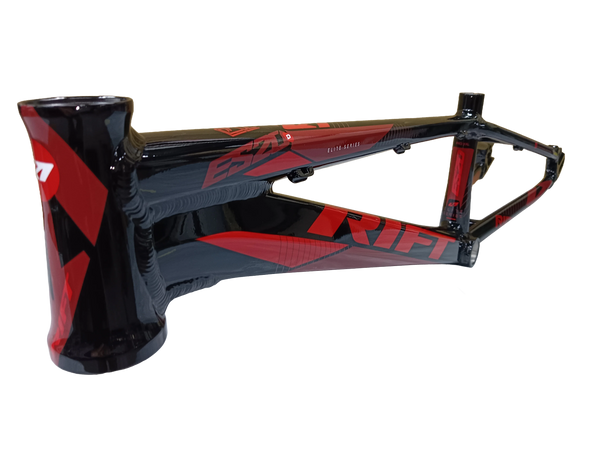

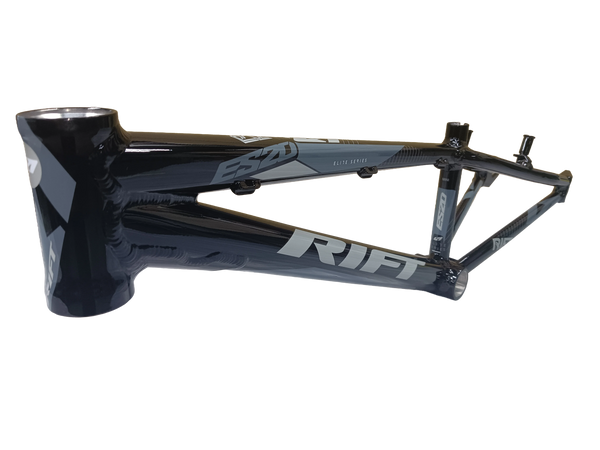

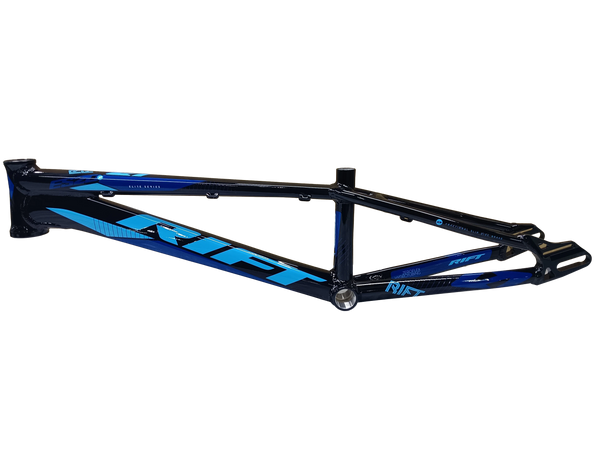

Rift ES20D Frame

$ 649.95
$ 649.95
Size
Color

Description

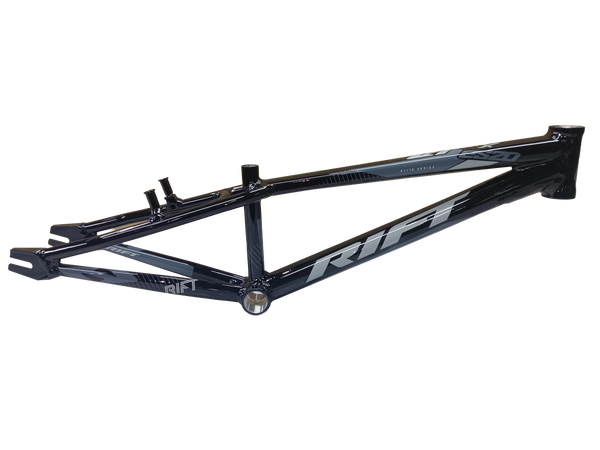

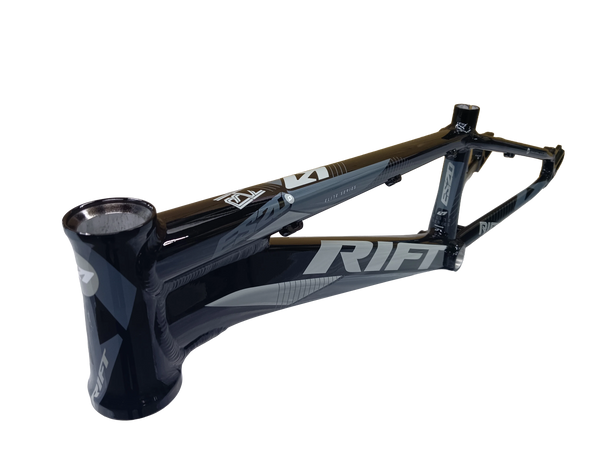

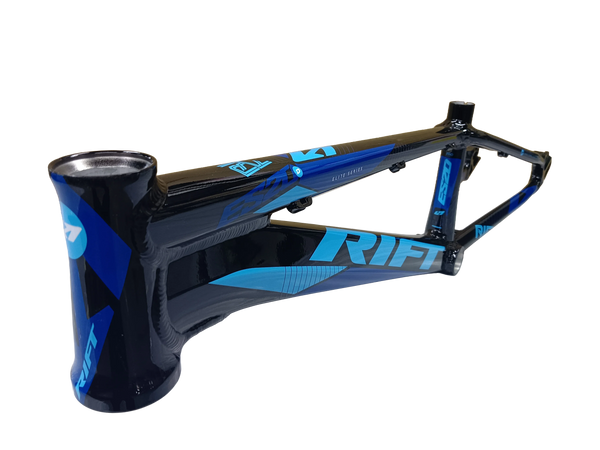

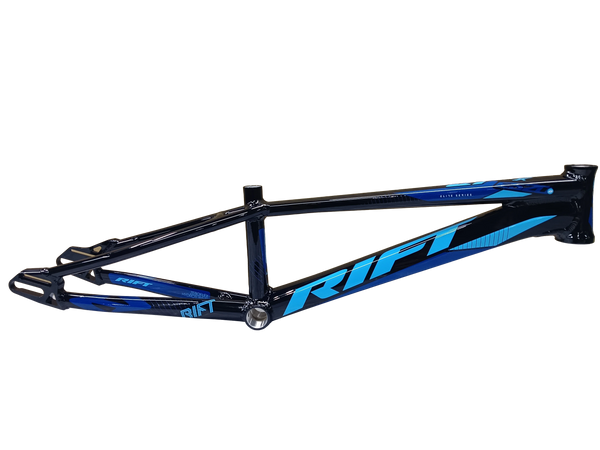

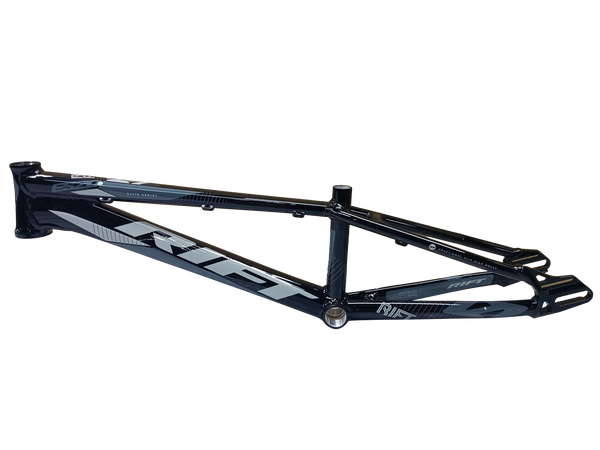

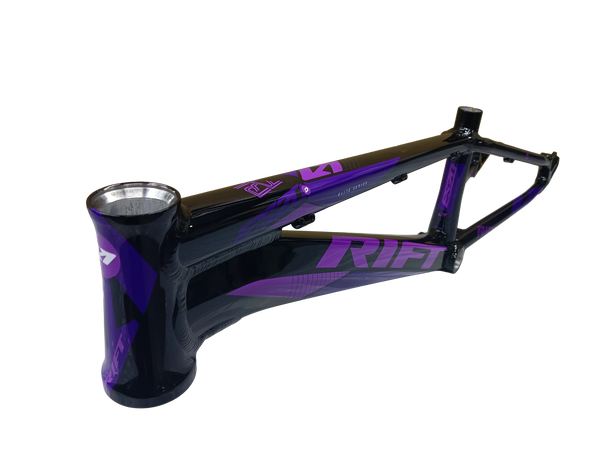

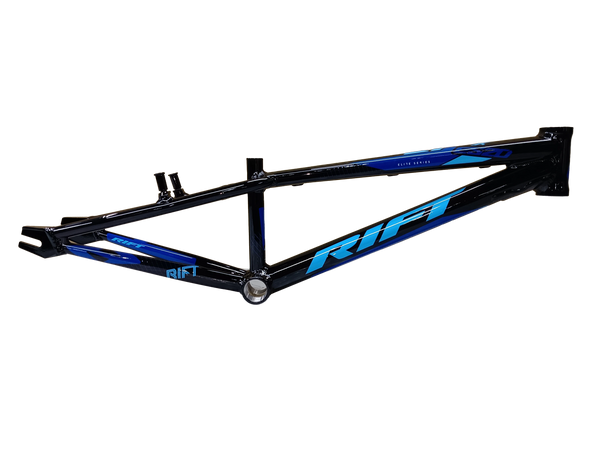

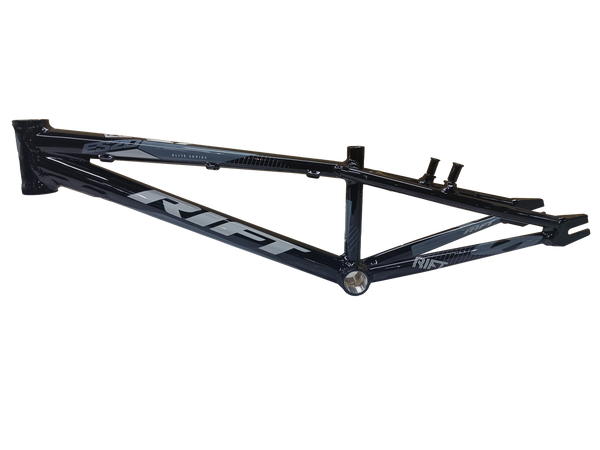

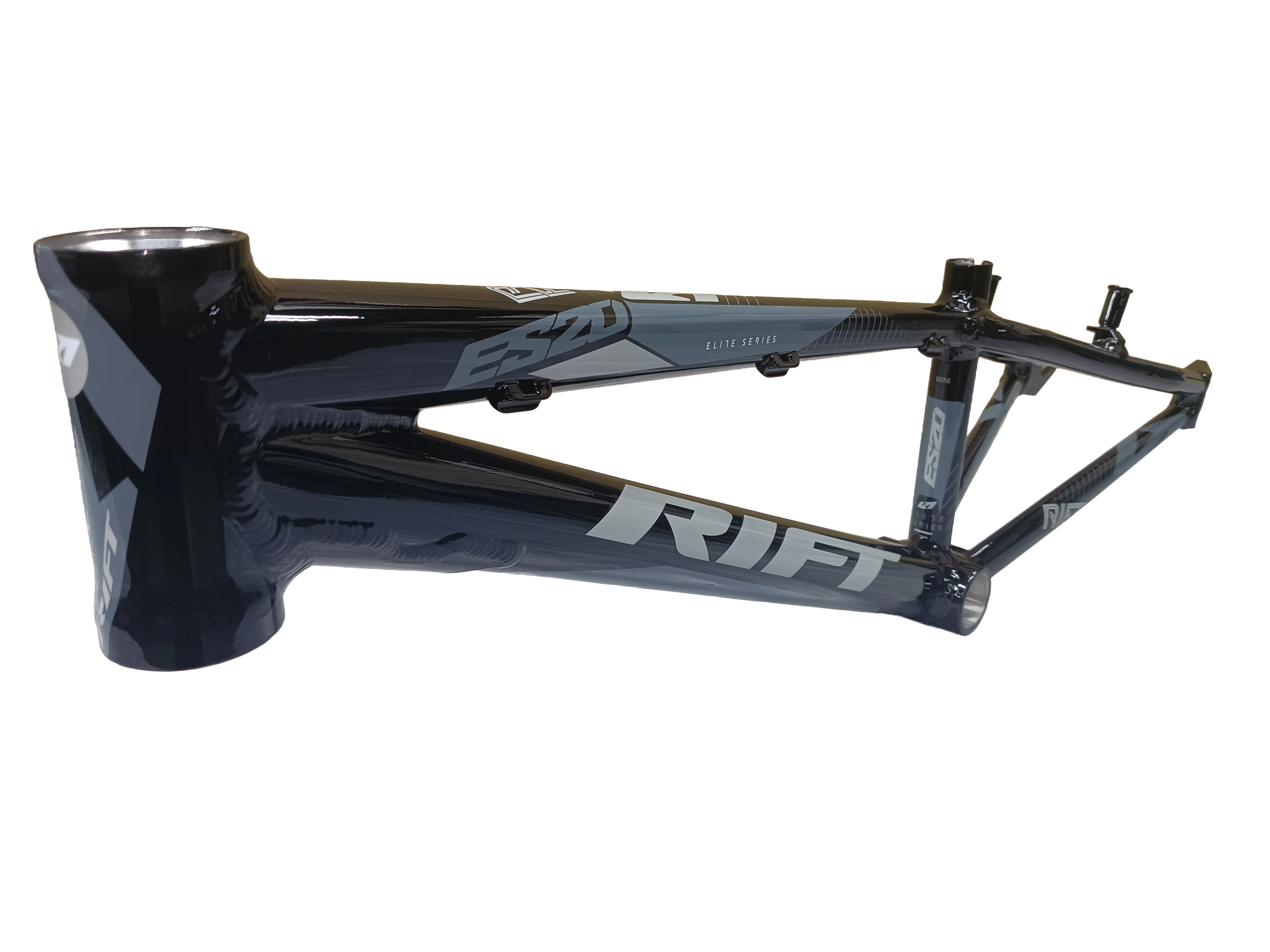

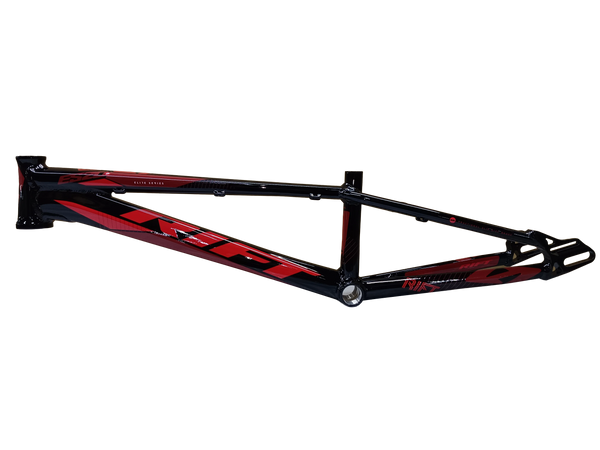

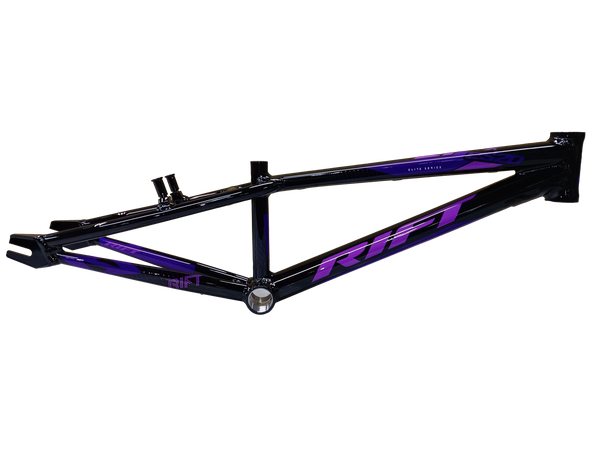

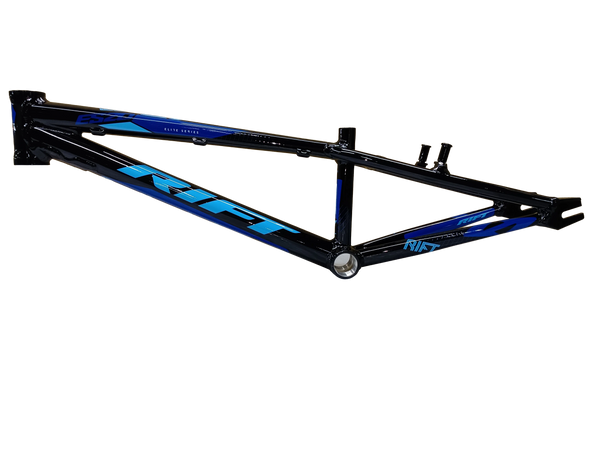

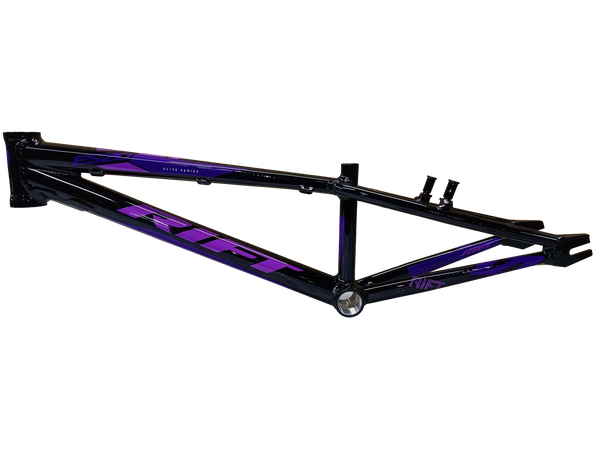

The Rift ES20D is Tangent’s flagship 20" race frame, built for speed, control, and dominance on the track. Crafted from 7005 double heat-treated aluminum, it delivers the fast, responsive feel elite riders expect across the full size range. For riders taking on the 8-meter Olympic hill, the Pro SXH pushes that same Rift DNA further with geometry refined through multiple iterations and input from top big hill pros.



Product Highlights



  • Tangent’s flagship 20" race frame built for elite-level BMX performance
  • 7005 double heat-treated aluminum construction for strength, stiffness, and response
  • Hydro-formed tubing and CNC-milled components for efficient power transfer
  • Clean finish with sealed-under clear coat decals for a sharp, lasting look
  • Geometry and sizing options available from Mini through Pro XXXL
  • Pro through Pro SXH sizes include 10mm built-in chain tensioners and disc brake mount standard
  • Pro SXH geometry developed for the demands of the 8-meter Olympic hill



Specifications



  • Type: 7005 double heat-treated aluminum BMX race frame
  • Axle Length / Size Compatibility: Mini to Expert XL: 10mm slotted dropout and V-brake only; Pro to Pro SXH: disc brake only, 10mm stock, compatible with 12mm or 12mm x 147mm axles with aftermarket hardware
  • Material: Hydro-formed top tube, down tube, seat tube, and chain stays
  • Brake Mount: Mini to Expert XL: V-brake only; Pro to Pro SXH: CNC 3D dropouts with integrated tensioners and disc hanger included

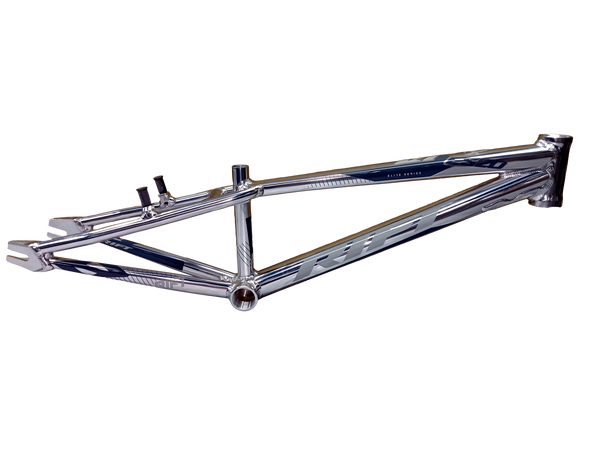

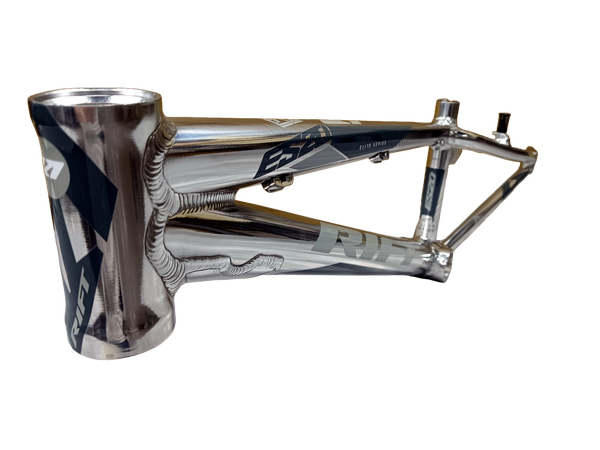

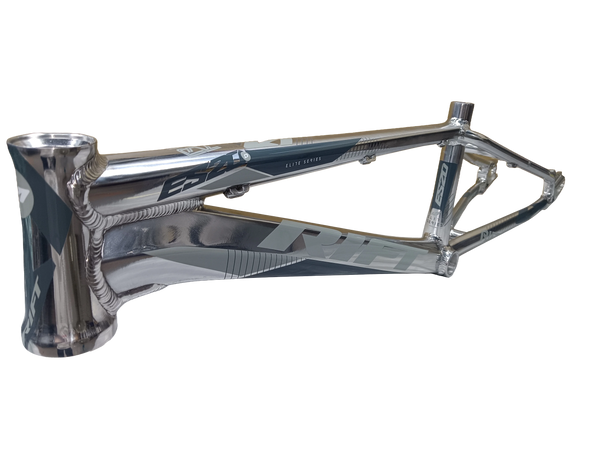

  • Finish Options: Standard or polished
  • Bottom Bracket: Pro SXH uses T47 x 68mm bottom bracket
  • Weight: Mini 1188g, Junior 1219g, Expert 1236g, Expert XL 1263g, Pro 1389g, Pro XL 1446g, Pro XXL 1474g, Pro XXXL 1673g

20 Inch Bikes
Specs Mini 20 Junior 20 Expert 20 Expert XL 20
Top Tube Length 17.75" or 457mm 18.75" or 476mm 19.5" or 495mm 20.0" or 508mm
Bottom Bracket Height 11.0" or 279mm 11.0" or 279mm 11.0" or 279mm 11.0" or 279mm
Chainstay Length 12.8" or 325mm 12.8" or 325mm 12.8" or 325mm 13.4" or 340mm
Head Tube Angle 73° 73° 73° 73°
Headset Size (Integrated) 1-1/8" (1" compatible) 1-1/8" (1" compatible) 1-1/8" (1" compatible) 1-1/8" (1" compatible)
Seat Tube Angle 72° 72° 72° 72°
Seat Clamp Size 25.4mm 25.4mm 25.4mm 25.4mm
Seat Post Diameter 22.2mm 22.2mm 22.2mm 22.2mm
Frame Weight 2 lbs 9 oz / 1188g 2 lbs 11 oz / 1219g 2 lbs 12 oz / 1236g 2 lbs 13 oz / 1263g
Specs Pro 20 Pro XL 20 Pro XXL 20 Pro XXXL 20 SXH 20
Top Tube Length 20.5" or 521mm 21.0" or 533mm 21.5" or 546mm 22.0" or 559mm 22.55" or 573mm
Bottom Bracket Height 11.25" or 286mm 11.375" or 289mm 11.375" or 289mm 11.6" or 294mm 11.375" or 289mm
Chainstay Length 14.4" or 365mm 14.9" or 379mm 15.2" or 386mm 15.5" or 394mm 16.375" or 414mm
Head Tube Angle 74° 74° 74° 74° 73.5°
Headset Size (Integrated) 1-1/8"–1.5" (Tapered) 1-1/8"–1.5" (Tapered) 1-1/8"–1.5" (Tapered) 1-1/8"–1.5" (Tapered) 1-1/8"–1.5" (Tapered)
Seat Tube Angle 72° 72° 72° 72° 73°
Seat Clamp Size 31.8mm 31.8mm 31.8mm 31.8mm 31.8mm
Seat Post Diameter 27.2mm 27.2mm 27.2mm 27.2mm 27.2mm
Frame Weight — — — — —
