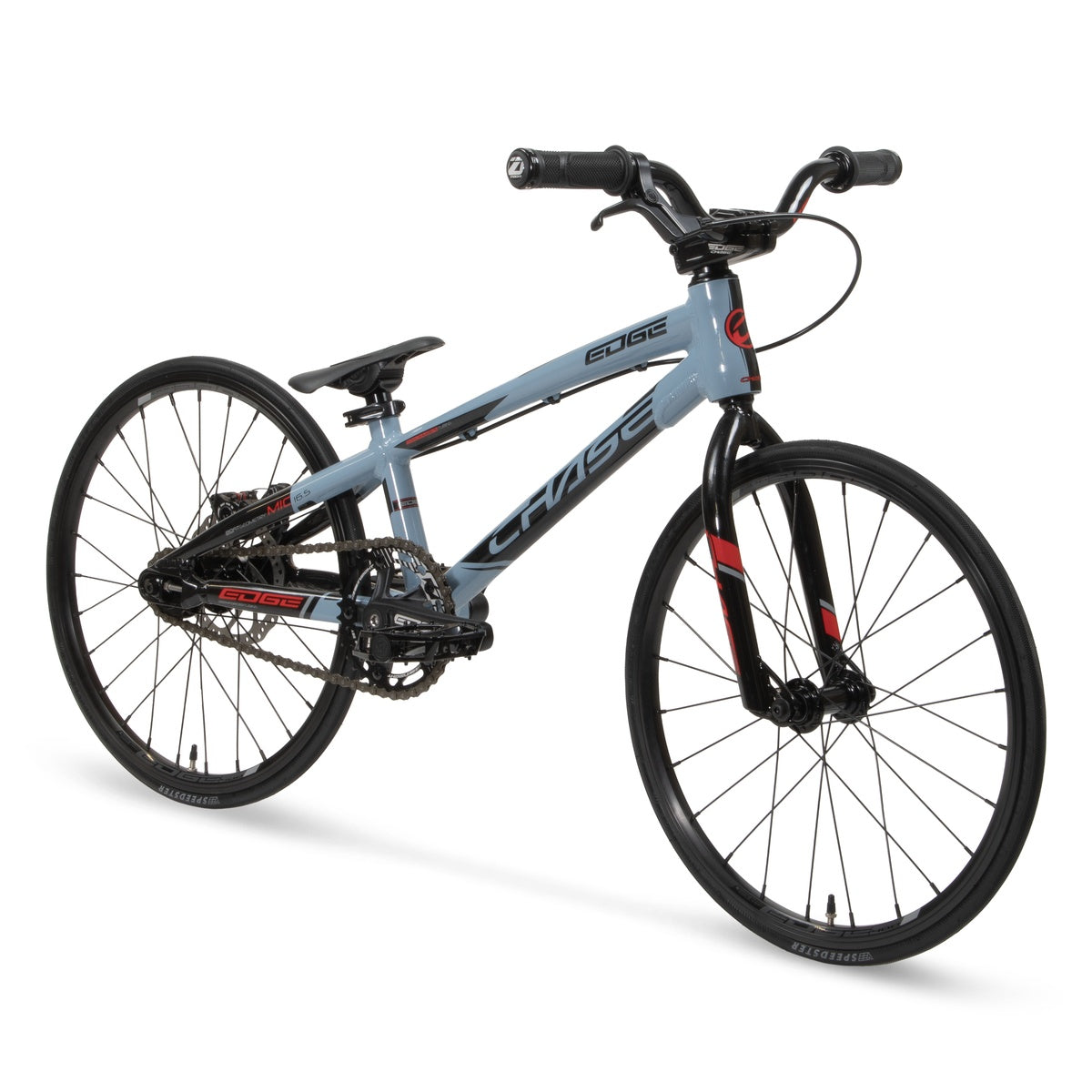

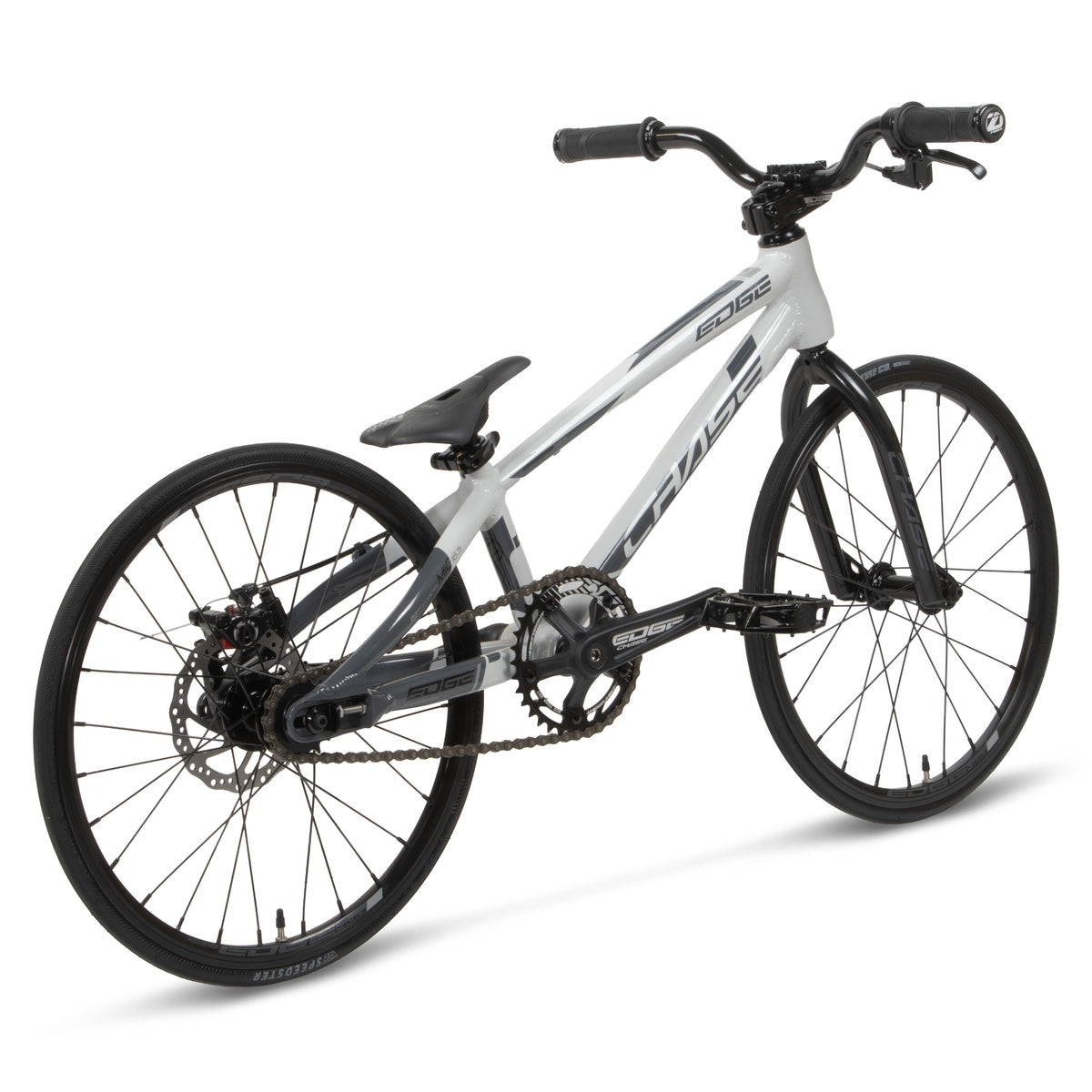

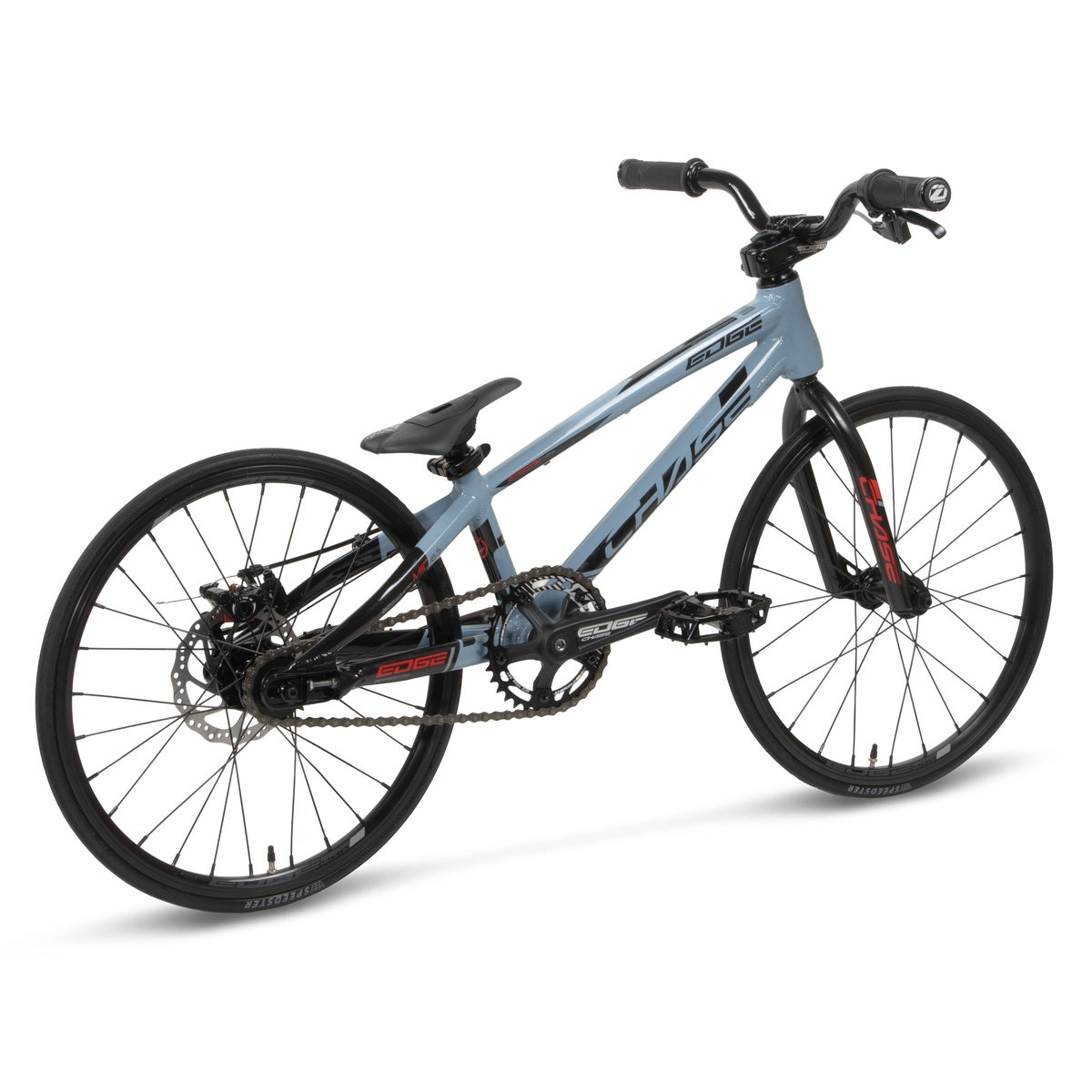

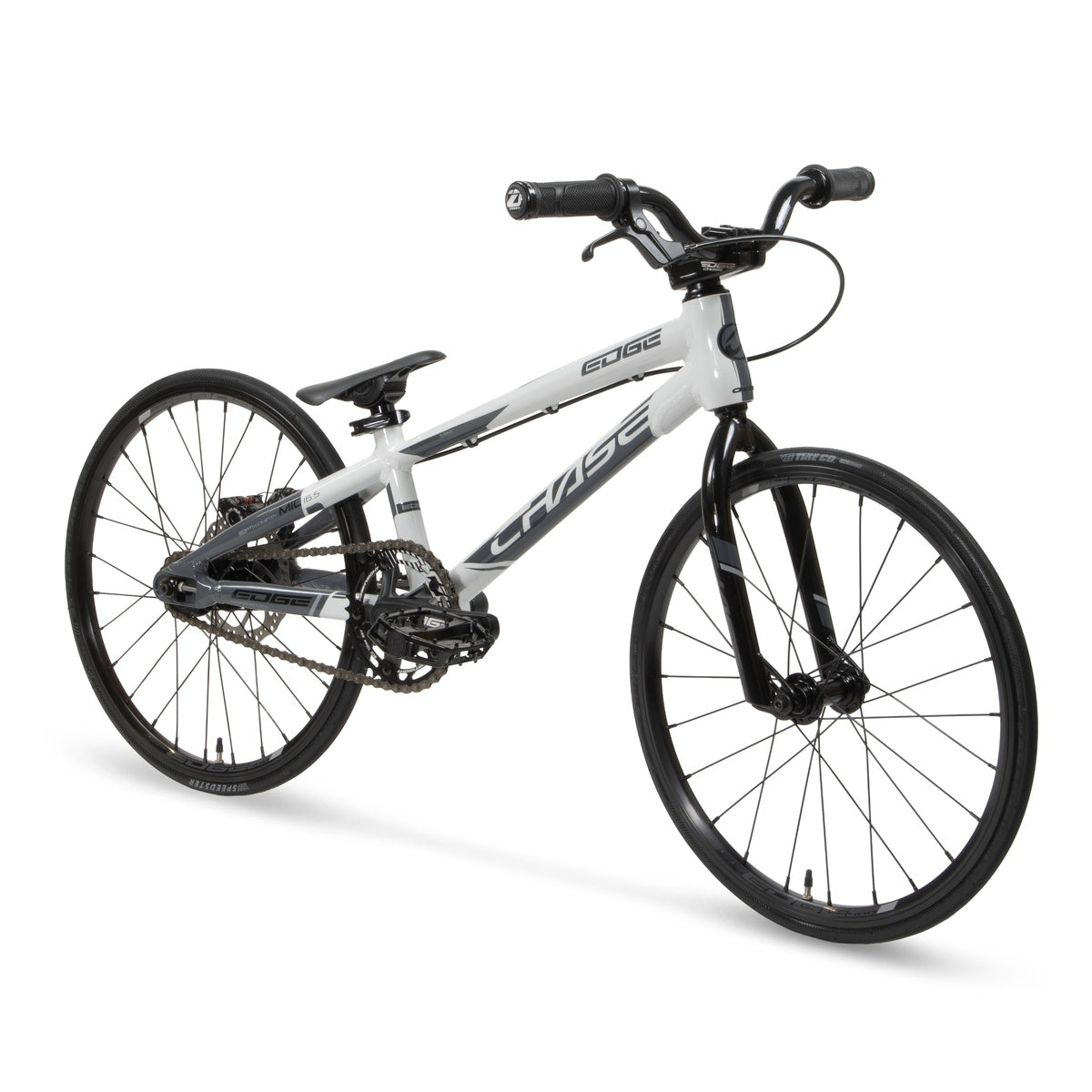

CHASE Edge Micro

$ 679.99
$ 679.99
Color

Description

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

The new Edge also features a two tone paint design, along with waterbed decals that are under the clear coat. Using some of the best brands in BMX to build up the Edge, we feature Pro level parts on various sizes of the Edge including Tioga tires, Chase 2 Piece 24mm Cranks, Insight Chain Ring, Shimano Brakes, a Triple Clutch System cassette hub, KMC Chains, and a Pivotal Seat and Seat Post. With 9 bike sizes offered, the Edge line up gives you a full range of size options for just about any size / age racer.



FRAME SIZE TT CS min LR AF SA HT SPL BBH WB WHEELS
Micro 16.25"
412.75mm		 10.85"
275.6mm		 1.8"
46mm		 71° 69° 4"
100mm		 8"
203.5mm		 10.25"
254mm		 28.81"
732mm		 18×1"
Mini 17.25"
438.15mm		 12.25"
312mm		 1.8"
46mm		 72° 70° 4.33"
110mm		 8.8"
225mm		 10.6"
269.2mm		 31.49"
800mm		 20×1-1/8"
Junior 18.75"
476.25mm		 12.5"
317.5mm		 1.8"
46mm		 73° 72° 4.33"
110mm		 8.8"
225mm		 10.6"
269.2mm		 33.85"
859.9mm		 20×1-1/8"
Expert 19.75"
501.65mm		 13"
330.2mm		 1.8"
46mm		 73° 72° 4.33"
110mm		 8.8"
225mm		 11"
279.4mm		 34.79"
883.8mm		 20×1-3/8"
Expert XL 20"
508mm		 13.5"
353mm		 1.8"
46mm		 73° 72° 4.7"
120mm		 8.8"
225mm		 11.5"
279.4mm		 35.55"
903mm		 20×1.50"
Pro 20.5"
520.7mm		 14"
355.6mm		 1.8"
46mm		 74° 72° 4.7"
120mm		 9.3"
238mm		 11"
279.4mm		 36.9"
938mm		 20×1.75"
Pro XL 21"
533.4mm		 14.15"
359.4mm		 1.8"
46mm		 74° 72° 4.7"
120mm		 9.3"
238mm		 11.5"
292.1mm		 37.21"
945.2mm		 20×1.75"
Pro XXL 21.5"
546.1mm		 14.15"
359.4mm		 1.8"
46mm		 74° 72° 4.7"
120mm		 9.3"
238mm		 11.5"
292.1mm		 38.16"
969.5mm		 20×1.75"
Pro Cruiser 21.5"
546.1mm		 14.5"
368.3mm		 1.8"
46mm		 74° 71° 4.7"
120mm		 9.3"
238mm		 10.6"
270mm		 37.97"
964.5mm		 24×1.75"

With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.
